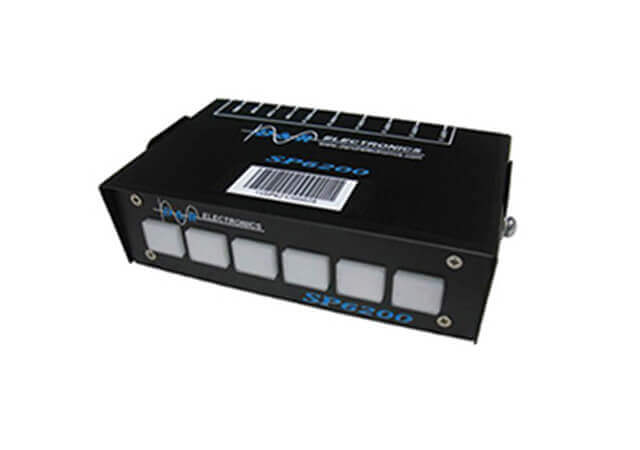

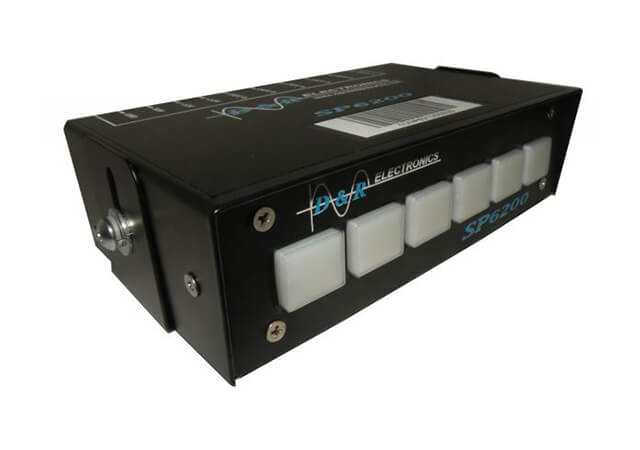

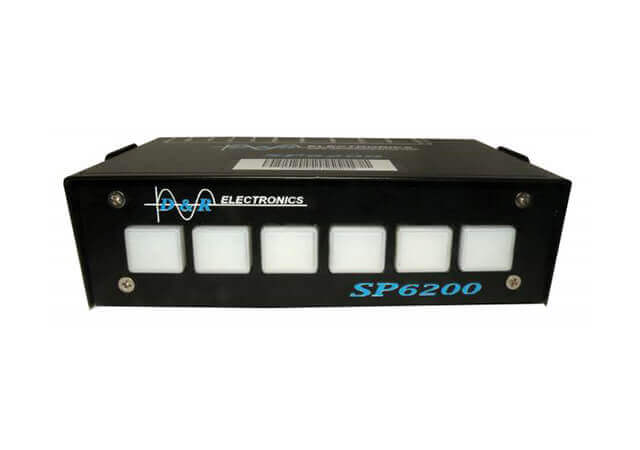

SP6200-controller
Standard Features
- 6 available switches with backlight, microprocessor controlled
- 6 available outputs
- Individual interchangeable labels for switch
- SW1 programmable as MASTER switch (ON/OFF switch only if not used as MASTER)
- SW2 to SW6 programmable as ON/OFF (factory default), MOMENTARY or TIMER (9 sec).
Specifications
- Input Voltage: 11 to 16 VDC
- Operating Temperature Range: -30°C to +65°C
- Maximum Current per Output Terminal: 15Amp
- Maximum Combined Current per System: 40Amp
- Supplied with a standard U-bracket
- Dimensions: Width-5 3/4’’, Height-1.5’’, Depth (Top) -3 5/8’’
