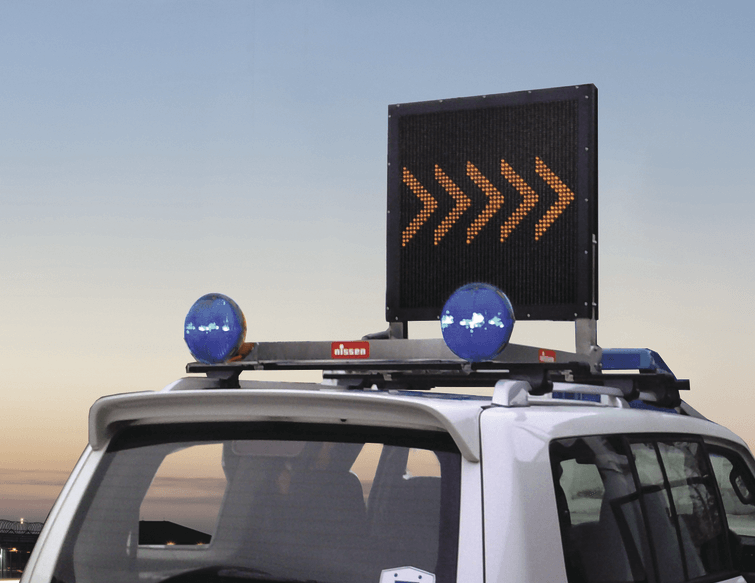

LED Variable Message Sign (WeNiPol)

PROFILE FRAME

• A perfect solution for emergency vehicles
• Stainless steel base frame
• Powder-coated aluminium housing
• Universal mounting on commercially available roof racks
• Impact-resistant anti-reflective polycarbonate front pane
• Maximum speed: in lifted position up to 80 km/h, in lowered position up to 160 km/h
• Electromotive lifting and lowering

LED DISPLAY

• Full matrix for displaying freely programmable static and dynamic texts and symbols to animations
• Good recognizability of the signs from almost every perspective and even from long distances
• Quick selection of the symbols
• Ready-to-use system
• With regard to photometric requirements, certified in compliance with EN 12966:2005+A1:2009
• Grid dimension 20 mm
• Up to four colours can be used
• Premium quality light-emitting diodes with a long service life
• Continuous brightness adjustment, automatic or manual

CONTROL & ELECTRICAL SYSTEM

• Manual cable control for operating all functions via one-touch keys
• 12/24 V operating voltage

Technical Data

• Total length: ST:1000 mm ST+/FE+: 1060 mm
• Total width: 920 mm
• Height lowered: 205 mm
• Height lifted: ST:1020 mm ST+/FE+: 1080 mm
• Weight: 50 kg
